Safe and Clean Transducer Rack

Produced by Accurate Laser Works, Inc

A local ultrasound technician approached us to design a tool to help keep their transducers safe while clean but not in use. Our backgrounding coding for CNC milling and product design meant we were the perfect ones for the job. We designed the Safe and Clean Transducer Rack first for our local hospital and have since sold them to hospitals and clinics around the world. We have the only rack with a docking system that uses the transducers own locking mechanism to safely secure it to the rack, preventing broken transducers and expensive repairs or replacements.

Why Safe and Clean Transducer Rack?

Removable Ultrasound Transducers are at risk when stored improperly.
Face Delamination
Crystal Impact Damage
Kinks or Cuts in the Cord
Moister Damage

Safe and Clean Transducer Rack Protects and Organizes Your Valuable Assets

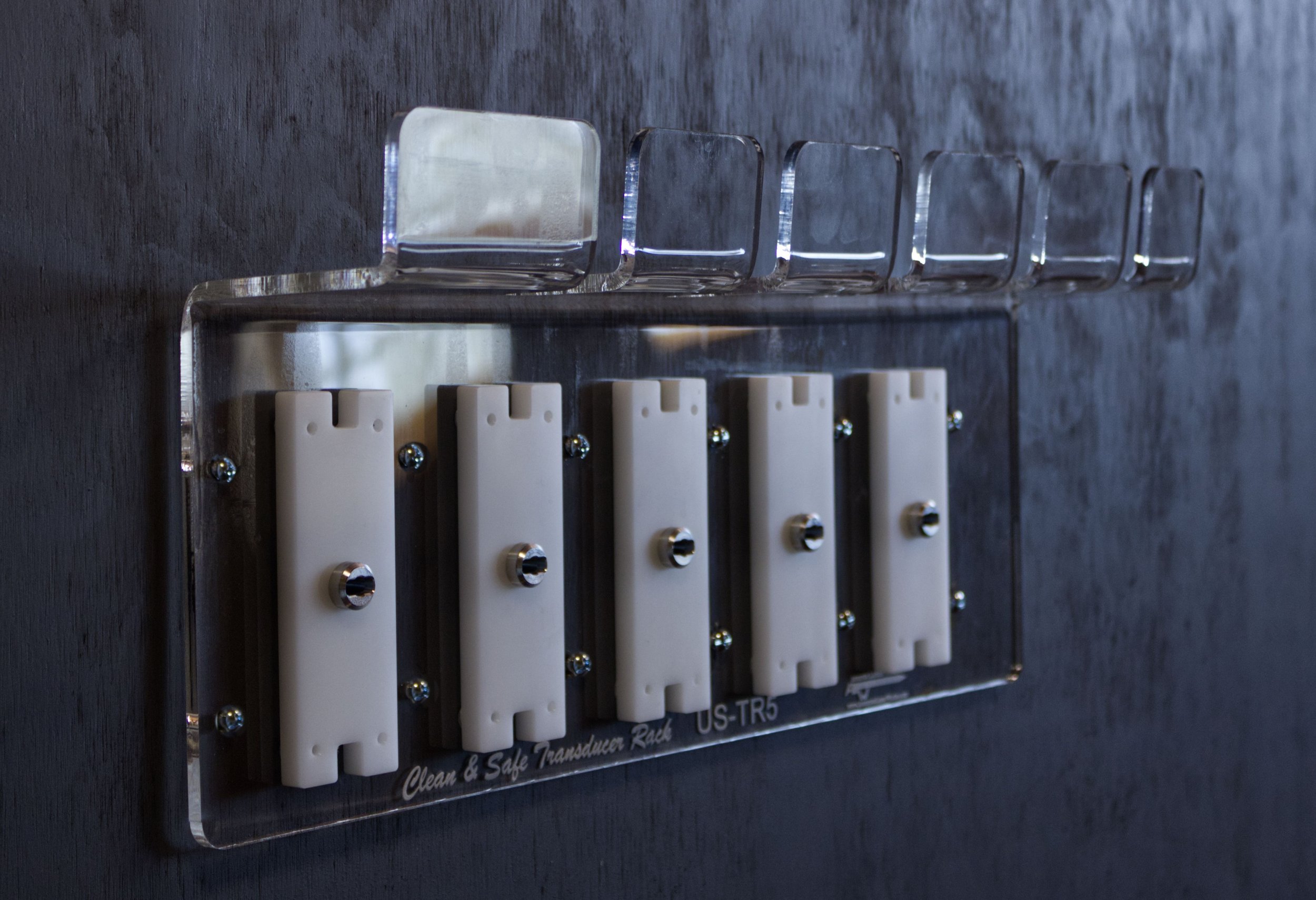

Using the connector’s own locking device, the connector is securely locked onto the rack
Uses a connector similar in function to the transducer connectors on your ultrasound machine
Connectors are billet machined or 3D printed depending on the model chosen to fit each connector snuggly.
The probe is conveniently hung next to the connector for easy retrieval and less cord strain.
The rack base is laser cut and thermo-formed form easy to clean 1/4” thick clear acrylic.

TR3 Model with 3D Printed Philips ED Connector

TR3 Model with 3D Printed Philips Connector

Prices

Holds 2 Transducers
9-1/4" Long
8-1/2" Tall
3-3/4" Deep
Holds 3 Transducers
11-7/8" Long
8-12" Tall
3-3/4" Deep

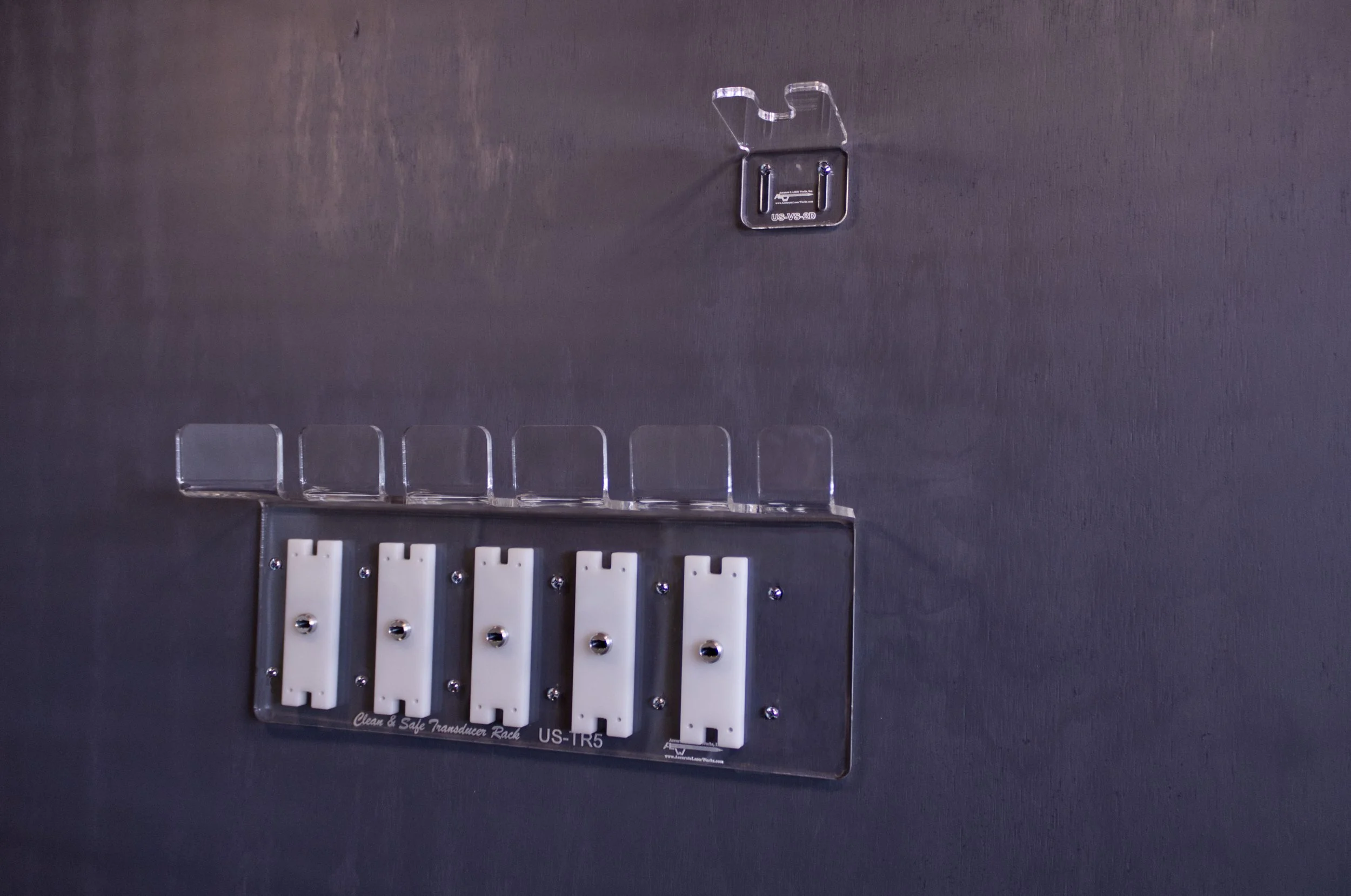

Holds 5 Transducers
17-1/2" Long
8-1/2" Tall
3-3/4" Deep

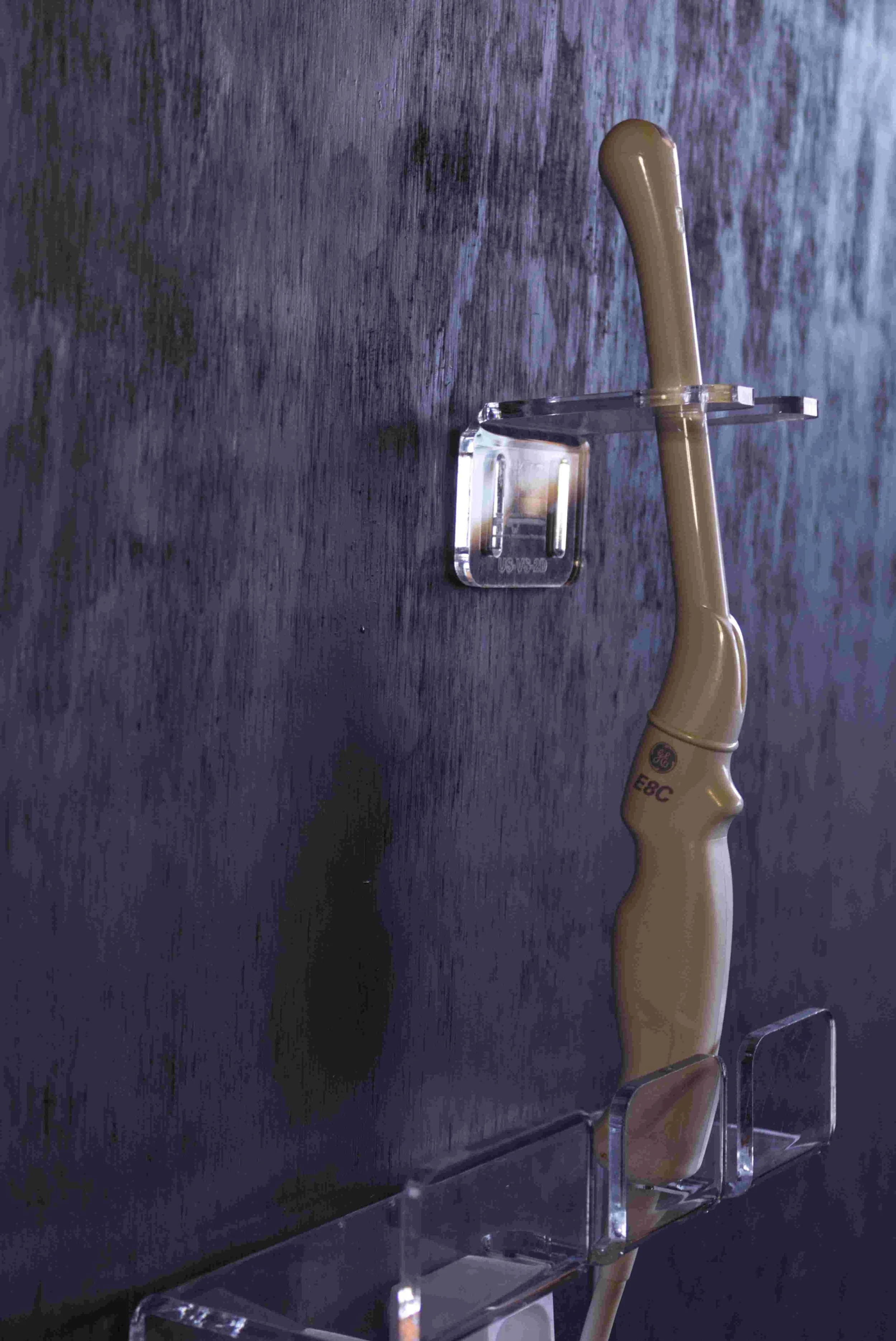

Vaginal Probe Supports
for 2D and 3D Probes

Purchase Now

Philips

Used on Philips Models
EPIQ Elite
EPIQ 7
EPIQ 5
Affiniti
Affiniti 50
CX50

Starting at $350/ea
P-Series Plug

Used on Philips Models
iu22
ie33

Also Used on GE Models
Logiq9
Logiq P3
Logiq P5
Logiq P6

And HDI (ATL) Model
5000

And Samsung Medison Models
AcuvixXQ (Large housing can cause some conflict with probe hanging slot)
ACCUVIX-XG
ACCUVIX-V20
ACCUVIX-V10
SONOACE-R7
SONOACE-R5
SONOACE-X8
SONOACE-X6

As Well As on Siemens Models
X300
X150
Antares

Starting at $350/ea
E9-Series Plug

Used on GE Models
Logiq E6
Logiq E8
Logiq E9
Logiq S7
Logiq S8

Also Used on Supersonic Imagine Models
Aixplorer

Starting at $350/ea
A-Series Plug

Used on Acuson Models
S1000
S2000
SC2000
S3000
SEQUOIA

Starting at $350/ea
T-Series Plug

Used on Toshiba Models
Xario
Xario XG
Aploi MX
Aplio XG
Artida
Viamo
Aplio 300
Aplio 500

Starting at $350/ea
